SL600HD - Pinnacle Heavy Duty Stair Lift
SL600HD
PINNACLE HEAVY DUTY STAIR LIFT
FEATURES
  • Industry-best 600 lb capacity
  • Seat swivels 85° at the upper landing for easy dismount or transfer
  • Up to 40' (12.2 m) of travel
  • Patented helical worm gear drive system for extremely smooth and quiet ride
  • Low Maintenance
  • Operating control in the armrest
  • Comfortable, plush upholstered seat
  • Safety sensors in the footrest and chassis will stop the lift if it meets an Construction
  • Options/Accessories: Key lock to protect against unauthorized use
REQUEST A QUOTE
ABOUT

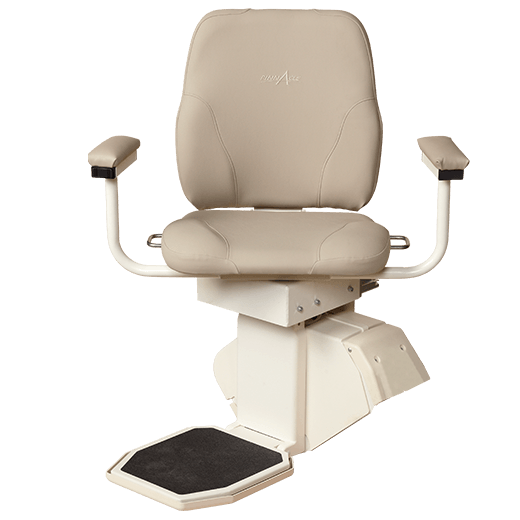

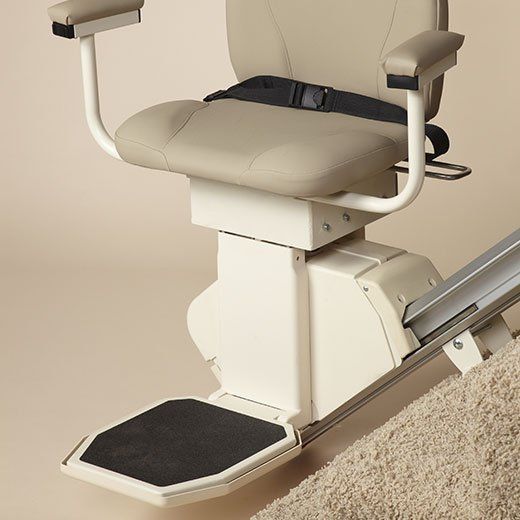

High-backed, contoured 24″ (61 cm) wide seat ensures a comfortable and secure ride. Sturdy, stationary armrests and reinforced footrest add stability for safer transfers. Slides out from wall as it pivots at top landing.

As with all Pinnacle stair lifts, the HD model is engineered to the highest industry standards and designed for optimal comfort, convenience and aesthetics.

Extending the many benefits of the Pinnacle’s patented Worm Drive, the SL600HD features a premium ride, little to no maintenance, comfortable seating, and ease of access with a 85° swivel – now with extraordinary lifting capacity.
REQUEST A QUOTE BROCHURE DOWNLOAD ALL PRODUCTS
SPECIFICATIONS
  • WEIGHT CAPACITY

    600 lb (272 kg)

  • SEAT SIZE

    24" W x 16" D x 17" H (61 x 40.6 x 43.2 cm)

  • SPEED

    14 fpm

  • FOLDED WIDTH

    17" (43.2 cm)

  • TRACK LENGTH

    15'6" (4.75 m) Standard; up to 40' (12.2 m)

  • POWER

    24V DC

  • INCLINE LIMITS

    32° - 45°

  • OUTDOOR

    No

  • DRIVE SYSTEM

    Nylon Polymer Helical Worm Gear

  • SAFETY FEATURES

    • Obstruction Sensors

    • 85° Seat Swivel Interlock

    • Seat Belt

    • Centrifugal Overspeed Brake

  • WARRANTY

    3-Year Parts

    10-Year on Gear Rack

    1-Year Battery

  • OPTIONAL

    • Retractable Seat Belt

    • Key Lock

    • Extra Rail
