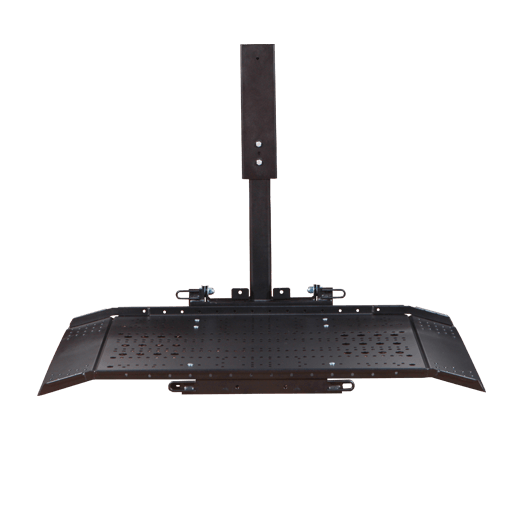

AL690 -Side Door Hybrid Platform Lift
AL625HD
SIDE DOOR HYBRID PLATFORM LIFT
FEATURES
  • Carries most standard power chairs and shorter scooters
  • Weatherproof, remote hand control (wireless option available)
  • No drilling required in most vehicles; connects to existing 2nd row seat hardware
  • No power chair or scooter modifications required
  • Third row seat spared in most applications
  • Delivers power chair or scooter close to driver or passenger door
  • Works with most minivans and SUVs
REQUEST A QUOTE
ABOUT
An Elevated Mobility exclusive!!! The AL690 Hybrid Platform Lift is an innovative solution to brings the mobility device closer to the vehicle.

Simple, User-Friendly Design

This lift delivers a power chair or scooter right next to the driver or passenger side door. Simple, one-button operation and compact design make the AL690 one of the most user-friendly lifts available.
REQUEST A QUOTE ALL PRODUCTS BROCHURE DOWNLOAD
SPECIFICATIONS
  • LIFTIING CAPACITY

    275 lbs (125 kg)

  • PLATFORM SIZE

    17"-28" adjustable width; 38" length

  • HEADROOM REQUIRED

    32"

  • DEPTH REQUIRED

    56" Minimum

  • PLATFORM HEIGHT

    4.5" Maximum (dead space)

  • VERTICAL REACH

    33.5"

  • WARRANTY

    3-Year Transferable
