IL500 - Sierra Incline Platform Lift
IL500
SIERRA INCLINE PLATFORM LIFT
FEATURES
  • Easy Installation
  • Lightweight for one-person installation; no major load- bearing wall modifications needed
  • Free-Standing Post Kit. Allows a wall-free installation, with the main carry load supported by step brackets
  • Space Saving
  • Just 13” wide when folded, Sierra carries up to 500 lb
  • Platform Options-Right, Left, 90°; 25” or 27.7” widths
REQUEST A QUOTE
ABOUT
The innovative Sierra IL500 is ideal for transporting a manual wheelchair up a straight stairway. Its 500 lb capacity will handle most wheelchairs up to 36″ in length and offers an integrated seat option for use as a stair lift. Sierra does not require wall modifications, saving installation time and cost.

Safely Transport Your Mobility Device

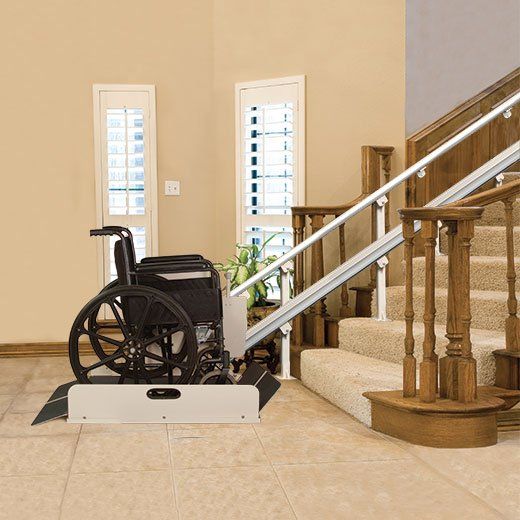

The innovative Sierra IL500 is ideal for transporting a user and their manual wheelchair up a straight stairway.
REQUEST A QUOTE ALL PRODUCTS BROCHURE DOWNLOAD
SPECIFICATIONS
  • WEIGHT CAPACITY

    500 lb (227 kg)

  • PLATFORM SIZE

    25" x 36"

  • SPEED

    14 FPM

  • FOLDED WIDTH

    13"

  • TRAVEL

    40' maximum

  • POWER

    24V DC

  • OUTDOOR

    NO

  • DRIVE SYSTEM

    Rack and Worm Gear

    24V DC 1/8 HP Motor with Brake

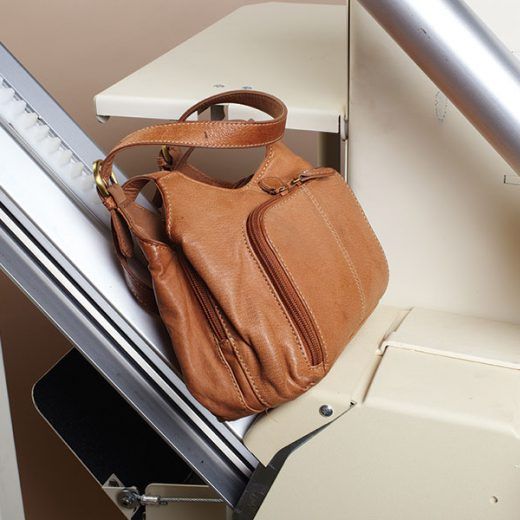

  • SAFETY FEATURES

    • Overspeed Governor

    • Upper and Lower Landing Limits

    • Upper and Lower Final Limits

    • Ramp Obstruction Sensors

    • Under Platform Safety Pan Obstruction Sensors

    • Drive Chassis Obstruction Sensors

    • Non-Skid Surface

  • WARRANTY

    2-Year Parts

    10-Year Gear

    1-Year Battery
