EPL - Enclosed Highlander Elevator Lift
EPL
ENCLOSED HIGHLANDER ELEVATOR LIFT
FEATURES
  • Constant pressure paddle switch with emergency stop (key switch optional)
  • Fixed or pit-mounted ramp provides easy entry when lift is lowered and additional stability when lift is raised
  • Enclosure can be assembled from the lift platform

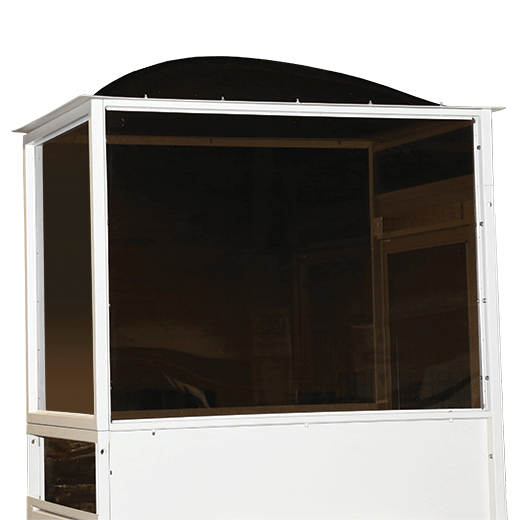

  • Options: Dome roof key locks, Interior ventilation or lighting
REQUEST A QUOTE
ABOUT

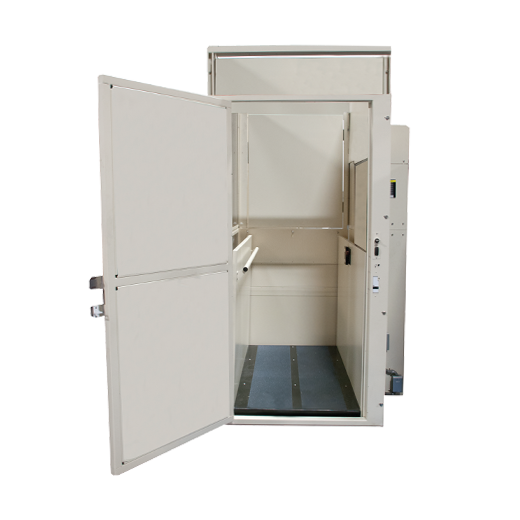

This self-contained Enclosed Platform is built to Elevated Mobility’s exacting VPL standards with powder coated steel enclosure panels, providing vertical access indoors or out, with up to a 171″ rise.

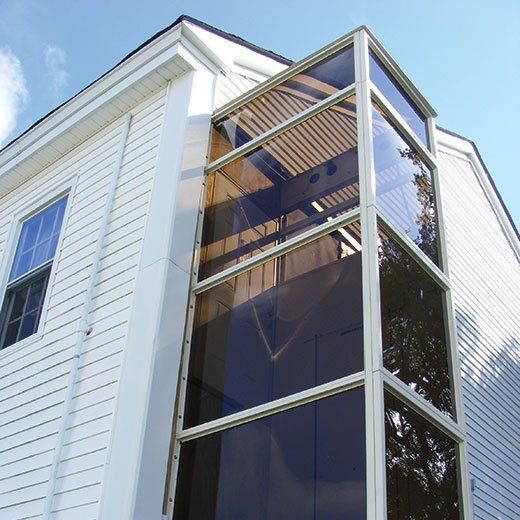

Indoors, they offer a self-contained, neater appearance and outdoors provide weather protection. Either way, the ready-to-install design saves installation time and does not require modifications to structures or landscaping.
REQUEST A QUOTE ALL PRODUCTS BROCHURE DOWNLOAD
SPECIFICATIONS
  • WEIGHT CAPACITY

    750 lb (340 kg)

  • PLATFORM SIZE

    36" x 60" with 42" high guard panels + grab rails with stationary ramp

  • SPEED

    10 FPM

  • DRIVE SYSTEM

    • Belt driven ball screw

    • 90 V DC 1/3 hp motor with brake

    • Optional: 24 VDC battery powered unit

  • POWER

    120V AC 15 A

    Optional: 240V AC

  • OUTDOOR

    Yes

  • INCLINE LIMITS

    Vertical

  • FOOT PRINT

    54" x 65"

  • CONTROLS
    • Constant pressure paddle switch with emergency stop
    • Optional: Key Switch
  • SAFETY DESIGN

    ASME A18.1, Section 2 - Vertical Platform Lifts

  • SAFETY FEATURES

    • Final Limit Switch

    • Ball Nut Safety Backup

    • Belt Monitor

    • Non-Skid Surface

    • Manual Lowering Device

    • Emergency Stop Button

    • EMIs at Landings

    • Grab Rail

  • WARRANTY

    2-Year Parts

    1-Year Outdoor
