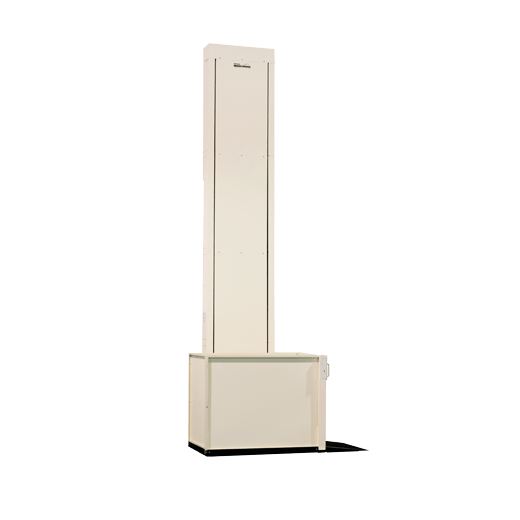

CPL - Commercial & Residential Elevator Lift
CPL400
COMMERCIAL & RESIDENTIAL ELEVATOR LIFT
REQUEST A QUOTE
FEATURES
  • Top-mounted motor and electrical box makes servicing easy and eliminates potential water issues
  • Ability to unbolt the base to get the lift through small openings
  • ETL Listed
  • Available in AC and DC models
  • Solid platform with non-skid surface for added safety
  • Solid 42” high guard panels
  • Weather-resistant design for indoor and outdoor use
  • Constant pressure, paddle switch controls with emergency stop button
  • Safety Sensors on underside of platform stop at obstructions

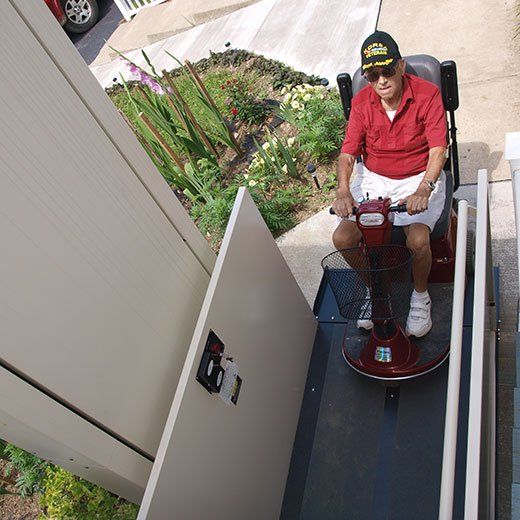

  • Stationary access ramp
ABOUT
The CPL series provides higher lifting capabilities to cover more levels or raised buildings.

Easy Operation & Upkeep at Increased Heights

Even with increased height, Elevated Mobility’s CPL is engineered for fast installation, easy operation, and is virtually maintenance-free indoors and out.

Designed with precision and care to be an incredibly high-quality, code compliant access solution, Elevated Mobility’s Highlander Elevator Lift Series is sure to meet your every need. Heights available from 4’ to 14’.
REQUEST A QUOTE ALL PRODUCTS BROCHURE DOWNLOAD
SPECIFICATIONS
  • WEIGHT CAPACITY

    750 lb (340 kg)

  • PLATFORM SIZE

    36” x 54” x 42”

  • SPEED

    10 FPM

  • DRIVE SYSTEM

    Belt driven ball screw / 1/3 hp motor with brake.

    Optional 24 VDC battery powered unit

  • POWER

    90V DC

  • OUTDOOR

    Yes

  • INCLINE LIMITS

    Vertical

  • FOOT PRINT

    50” x 54” (127 cm x 137.2)

  • CONTROL CIRCUIT

    24 VAC (Low Voltage Controls)

  • CONTROLS

    Constant pressure paddle switch with emergency stop (key switch optional)

  • MANUAL LOWERING

    Provided

  • SAFETY DESIGN

    ASME A18.1, Section 2 – Vertical Platform Lifts

  • SAFETY FEATURES

    Safety pan, Final limit, Ball nut safety backup, belt monitor and non-skid surface

  • WARRANTY

    2-Year Parts

    1-Year Outdoor
